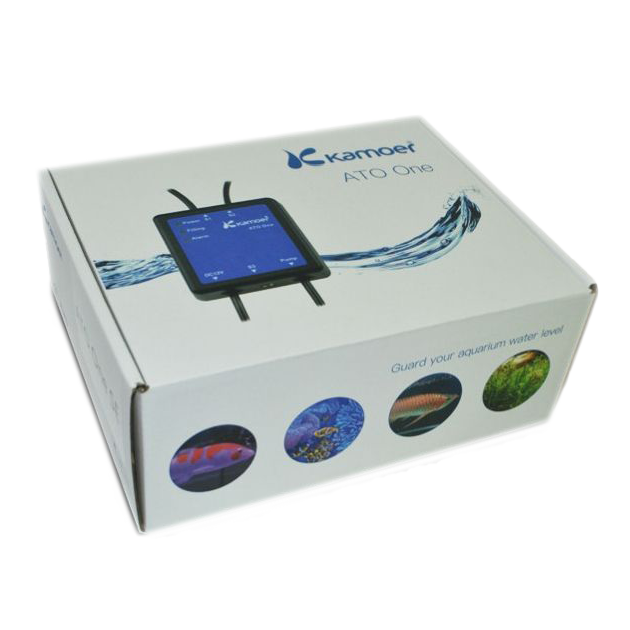

Kamoer ATO One 2

ATO One is a smart water replenishing device that requires only the sensor and the refill pump to be installed. It can be used after power-on without setting any parameters. It can be used without powering any parameters. Standard 1 optical level sensor and 1 float level sensor. The optical level sensor is used to monitor the water level to determine whether water needs to be replenished. The float level sensor is used to prevent overflow. An optional float level sensor is available to monitor the freshwater reservoir for water shortage. ATO One is rich in status indicators. When the Anti-overflow Sensor or overtime, the refill pump is not inserted or the freshwater reservoir is short of water, the ATO One will have an indicator light and a buzzer alarm.

Note

 Please use the power adapter that comes with the product.

 The optical level sensor should be away from the air bubbles; otherwise it will be misunderstood due to interference.

 The optical liquid level sensor is susceptible to the influence of dirt. Please pay attention to erasing the dirt on the sensor.

 This product does not have waterproof function. Please use it in the environment of temperature 0-40 ° C and humidity <80%.



Packing List

1x ATO One controller

1x S1 Float sensor

1x S2 Optical sensor

1x Optical sensor bracket

1x Float sensor bracket

4x Plastic magnetic stickers

1x DC 12V Power supply

1x Solenoid valve

1x Tube holder

1x Siphon break

2x PVC tubing
